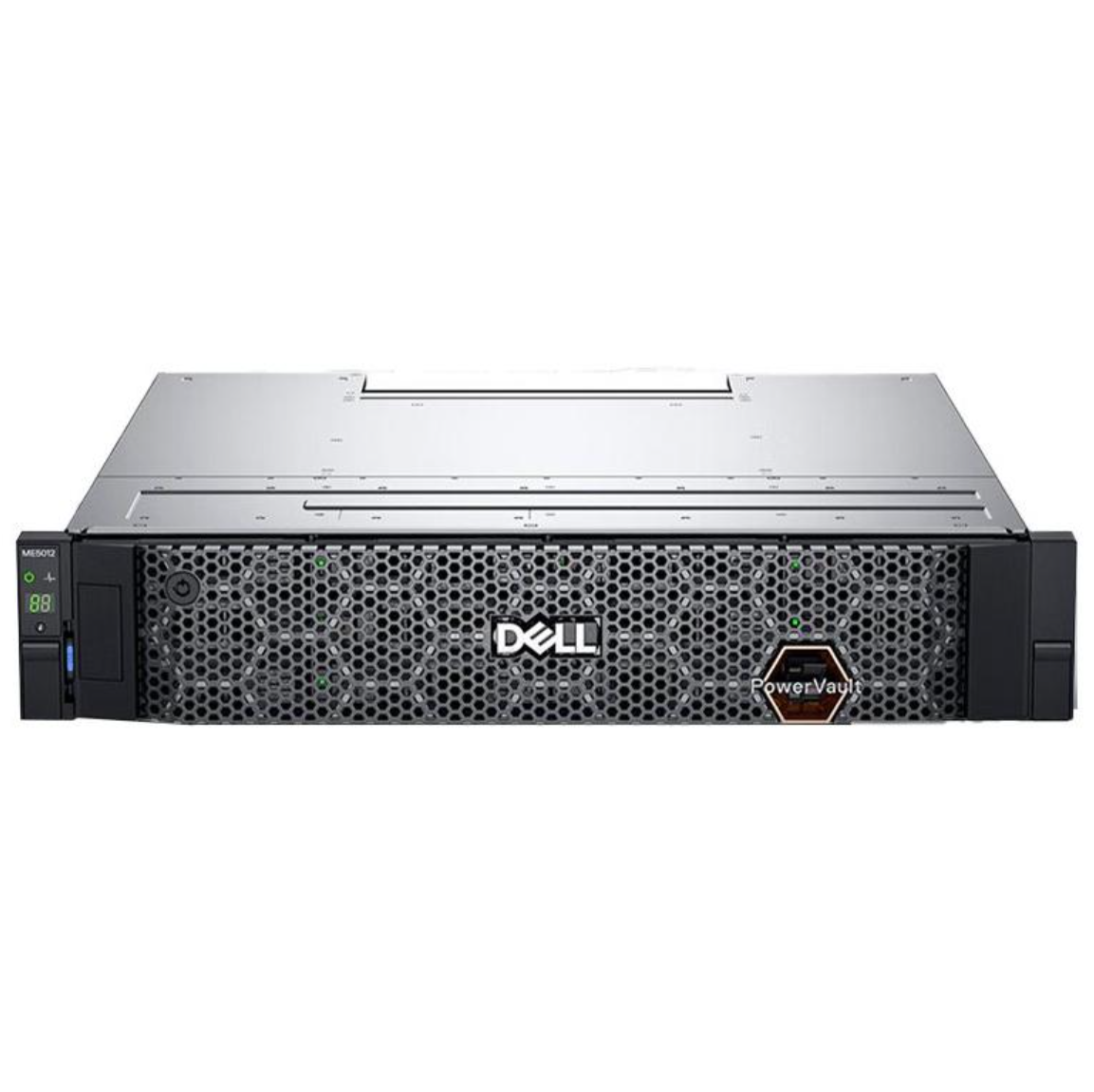

Dell Emc Me5012 Storage Array 2*2.4TB 10K RPM SAS HD 8Port Dual Controller 580W

Name: Dell Emc Me5012 Storage Array 224TB 10K RPM SAS HD 8Port Dual Controller 580W
Brand: DELL
Price: 1 USD

China Dell Emc Me5012 Storage Array 2*2.4TB 10K RPM SAS HD 8Port Dual Controller 580W factory

Brand Name : DELL

Model Number : ME5012

Place of Origin : China

MOQ : 1 set

Price : Negotiable

model number : ME5012

Power supply : 580W

Products Status : stock

Disk Types : 12LFF

Warranty : 3 years

Condition : new original

Contact Now

EMC PowerVault ME5012 Storage Array 2*2.4TB 10K RPM SAS HD 8Port Dual Controller 580W

PowerVault ME5012
• Up to 5.2 PB capacity
• 12 x 3.5" drive bays
• Up to 264 drives
• Multi-protocols – SAS, iSCSI, Fibre Channel
• Single/Dual Controller
• 12Gb SAS Backend
• All premium software features included

PowerVault ME5 arrays support SAN-attached Fibre Channel (16/32 Gb) and iSCSI (10/25Gb) connectivity. A switch-attached solution(or SAN) places a Fibre Channel or Ethernet switch between the servers and the controller enclosures within the storage system.
Using switches, a SAN shares a storage system among multiple servers reducing the number of storage systems required for a
particular environment. Using switches increases the number of servers that can be connected to the storage system to scale to
greater than four servers, which is the limit for a direct-attached environment.
When designing a SAN, we recommend using two switches. This practice enables you to create a redundant transport fabric between the server and the PowerVault ME5 storage. This configuration also allows you to take an individual switch out of service for maintenance, or due to failure, without impacting storage-access availability.
When cabling the PowerVault ME5 controllers in a switched environment, pay close attention to the layout of the cables in both
Fibre Channel and Ethernet fabrics. In the following figure, controller A (the left-most PowerVault ME5084 controller) has ports 0
and 2 connected to the top switch, and ports 1 and 3 are connected to the bottom switch. This configuration repeats in a similar
fashion with controller B. The servers are configured with each server having connections to each switch. This cabling ensures
that access to storage remains available between an individual server and the PowerVault ME5 array during switch maintenance.

SKU Number	DELL PowerVault ME5012
Model Name	PowerVault ME5012 FibreChannel LFF Storage
Chassis	12LFF
Number of controllers per array	Dual hot-swappable active/active controllers
Number of host ports per array	2 hostportsper controller
System memory	8GB for controller and 16GB for cache (24GB total)
Internal storage	ME5012: 12 x 3.5” drive bays (2.5” drive carriers supported)
HDD	3*4TB 7.2K SAS 12Gbps 3.5
FC ports	Max 32Gb 8 per array(support auto-negotiate to 16Gb)
Max raw capacity	ME5012: Up to 2.64PB (total with 9 ME412)
	ME5012: Up to 1.92PB (total with 9 ME424)
	ME5012: Up to 5.80PB (total with 3 ME484)
Disk expansion protocol	12Gb SAS
RAID Levels	RAID 1, 5, 6, 10, or ADAPT RAID
PowerSupply	2x580W Two AC power supplies
FormFactor	2U Rack
Product dimensions(imperial)	87.9 mm x 483 mm x 618.7 mm
Supported host OS	Windows 2022, 2019 and 2016
	RHEL 8.2 and 7.8
	SLES 15.2 and 12.5
	VMware 7.0 and 6.7
	Citrix XenServer 8.x and 7.x
Virtualization integration	VMware vSphere (ESXi)
	vCenter; SRM
	Microsoft Hyper-V
Warranty	3 year

Dell Emc Me5012 Storage Array 2*2.4TB 10K RPM SAS HD 8Port Dual Controller 580W
